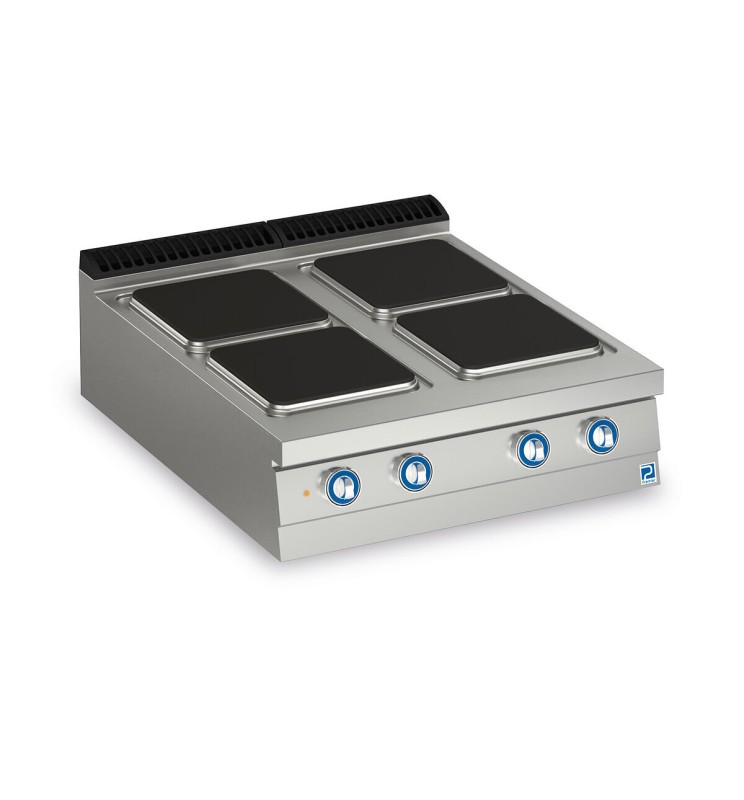

KITCHEN 4 ELECTRIC SQUARE PLATES TOP VERSION

P90PC/E801
CR1015789PR - Standard Standard
Tipo Alimentazione: Standard
Promo: Standard

It is the choice of those who need maximum strength and power. Queen9 is distinguished by its 900 mm depth, a 20/10-thick work surface, double-crown burners, and the use of elegant stainless steel with a Scotch Brite finish. Details that not only offer maximum functionality and aesthetics, but also take into account the practical and ergonomic needs of those who work. The extreme freedom of composition allows top models to be combined with accessorizable oven and neutral base units, even with hygienic finishes. With more than 350 models immediately available in the catalog, Queen9 is already ready to start giving its best. In addition, all equipment that makes up a Queen9 kitchen is certified in compliance with international standards, including CE, GAR, AGA and others.All-molded hob made from a single sheet of thick stainless steel. Cast-iron radiant plates, fixed watertight to eliminate any liquid infiltration on electrical wiring. 6-position, ergonomic, recessed and tilted power output knobs. Warning lights indicating "plates under tension." Electric oven Groups of stainless steel heating elements placed on the ceiling and under the sole of the firing chamber. Thermostatic temperature control in the chamber from 100°C to 300°C. Warning light indicating "equipment under voltage." Indicator light indicating that the set temperature has been reached. The temperature is adjusted by means of a 7-position selector switch, and a warning light indicating the activation of the heating is located on the dashboard. Equipment certified for low voltage directive 2014/35/EU according to the international CB scheme. Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.


Square plates of 30x30 each, fixed watertight on the worktop.



The temperature is adjusted by means of a 7-position selector switch, and a warning light indicating the activation of the heating is located on the dashboard.



Equipment certified for low voltage directive 2014/35/EU according to the international CB scheme.



Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety.



The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.

CR1015789PR - Standard Standard

Data sheet

Net weight
75Kg
Gross weight
85Kg
Production site
BELLUNO
N. Fires/Plates
QUATTRO FUOCHI
Packaging width
1020
Width
800mm
Packaging length
840
Alimentazione
ELETTRICA
Electrical power
16Kw
380-415V 3N
Model
P90PC/E801
Frequency
50-60 HzHz
CODE
CR1015789PR
Material type
ZPF
IP grade
IPX5
Depth
900mm
Product variant
PIASTRE EL.QUADRE
Height
250mm
Packaging height
550
Volume
0.18m3
Gross volume
0476
Configurazione
4 30x30

Specific References

mpn
P90PC/E801
